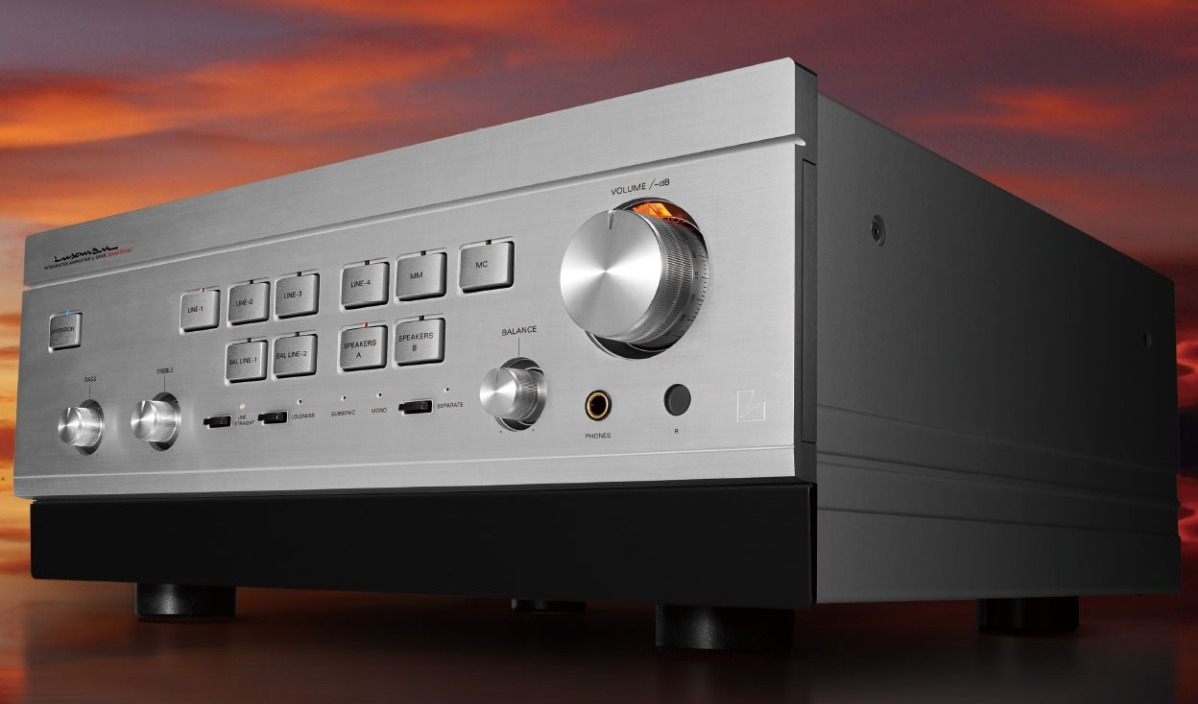

Luxman L-595 A SE
Pure classe A, édition limitée
Nouveauté - Dans notre showroom
Un petit bijou d'amplificateur stéréo intégré pour les audiophiles exigeants
LUXMAN célèbre son 95e anniversaire et parmi nos nombreux composants qui se sont fait un nom au cours de notre histoire, nos amplificateurs intégrés de pure classe A de la série L-570 ont une réputation qui fascine encore aujourd'hui les passionnés d'audio.
Le dernier L-595A SPECIAL EDITION est un modèle de production limitée qui reproduit fidèlement l'apparence, la qualité sonore et l'image après 30 ans. Il est remarquable parmi les composants audio modernes, tout en conservant une opérabilité simple et en présentant de beaux détails extérieurs, tels que l'appareillage de commutation à sélection directe en aluminium avec indicateurs, le voyant de niveau de volume et un lamage audacieux autour du bouton de volume calibré. Le panneau avant a une finition fine et délicate contrastant avec la partie inférieure, fabriquée en alumite noire, crée un jeu de couleurs bicolore saisissant, comme les modèles L-570 originaux. La plaque supérieure a également une belle finition capillaire pour correspondre au panneau avant et une ventilation élargie pour améliorer la dissipation de la chaleur. La section amplificateur est équipée d'ODNF-u, qui prend en charge une tonalité fraîche et dense avec une quantité écrasante de détails musicaux. Avec sa finition extérieure spéciale, son design industriel et ses circuits les plus récents, nous espérons que le L-595ASE en édition limitée spéciale à 300 unités (mondiales) deviendra très recherché par les amateurs d'audio et les mélomanes.
ODNF and LECUA
Latest circuit
The L-595A SPECIAL EDITION incorporates the finest of LUXMAN's latest circuit technologies. Our original ODNF feedback circuit, which achieves the highest initial slew rate, has evolved into the latest ODNF-u version with improved error detection circuitry. The volume control section uses the new LECUA1000 88-step electronically controlled attenuator, which minimizes sound quality deterioration at low levels, and a discrete buffer that increases the driving force of the preamplifier circuit. Copper-clad steel shielding protects the transmission path of delicate signals from external noise. The copper alloy RCA terminals have the conductivity of copper and hardness of brass.
*LECUA : Luxman Electronically Controlled Ultimate Attenuator
*ODNF : Only Distortion Negative Feedback
Commitment to Pure Class A
For irreplaceable musical expression
The L-595A SPECIAL EDITION operates in pure class A mode, eliminating crossover distortion during amplification. A rated output of 30W + 30W (8Ω) is generated by the power amplifier circuits. It's 3 stage Darlington equipped, triple paralleled push-pull configuration greatly improves S/N ratio and high-frequency distortion characteristics, bestowing a textural clarity and the drivability of a pre and power amplifier combination. The power supply section features a large, highly regulated power transformer with independent left and right channel high-capacity filter capacitors which combine to supply instantaneous power with great stability. And unique, vibration damped constructions are employed throughout. Large speaker relays with very low resistance achieve low impedance at the speaker terminals. All of these technologies contribute to achieve the finest level of musical expression expected from a pure class A product.
Applying accumulated LUXMAN technologies developed over decades">
Unique LUXMAN design details and knowhow
Applying accumulated LUXMAN technologies developed over decades
Design methods and housing structures are major factors that affect sound quality and timbre. Our goal was to design levels of deep musicality for the L-595A SPECIAL EDITION. The joint input/output circuit board is peel-coated without resistant green film coating which can cause high-frequency noise components. Smooth, rounded trace rounded trace patterns connect points on the custom-made, gold plated peel-coat circuit board.
Multi-functionality and convenience">
A substantial and exceptional stereo integrated amplifier
Multi-functionality and convenience
The L-595A SPECIAL EDITION combines the quality of a separate amplifier and preamp with the functionality of integrated amplifiers into a single unit. The built-in phono amplifier, with MM/MC compatibility, allows you to enjoy superb analog record playback. The unit features electronically controlled bass/treble tone controls and a volume-linked loudness function that matches human hearing characteristics. There are also perfect applications for different listening environments, such as a bi-amp configuration with an added power amplifier and the SEPARATE function that enables coexistence with the surround environment of an AV amplifier. In addition, we have included our premium RA-17A aluminum remote controller that can also operate compatible CD/SACD players.
SPECIFICATIONS
Rated output 30W＋30W(8Ω)、60W＋60W(4Ω)

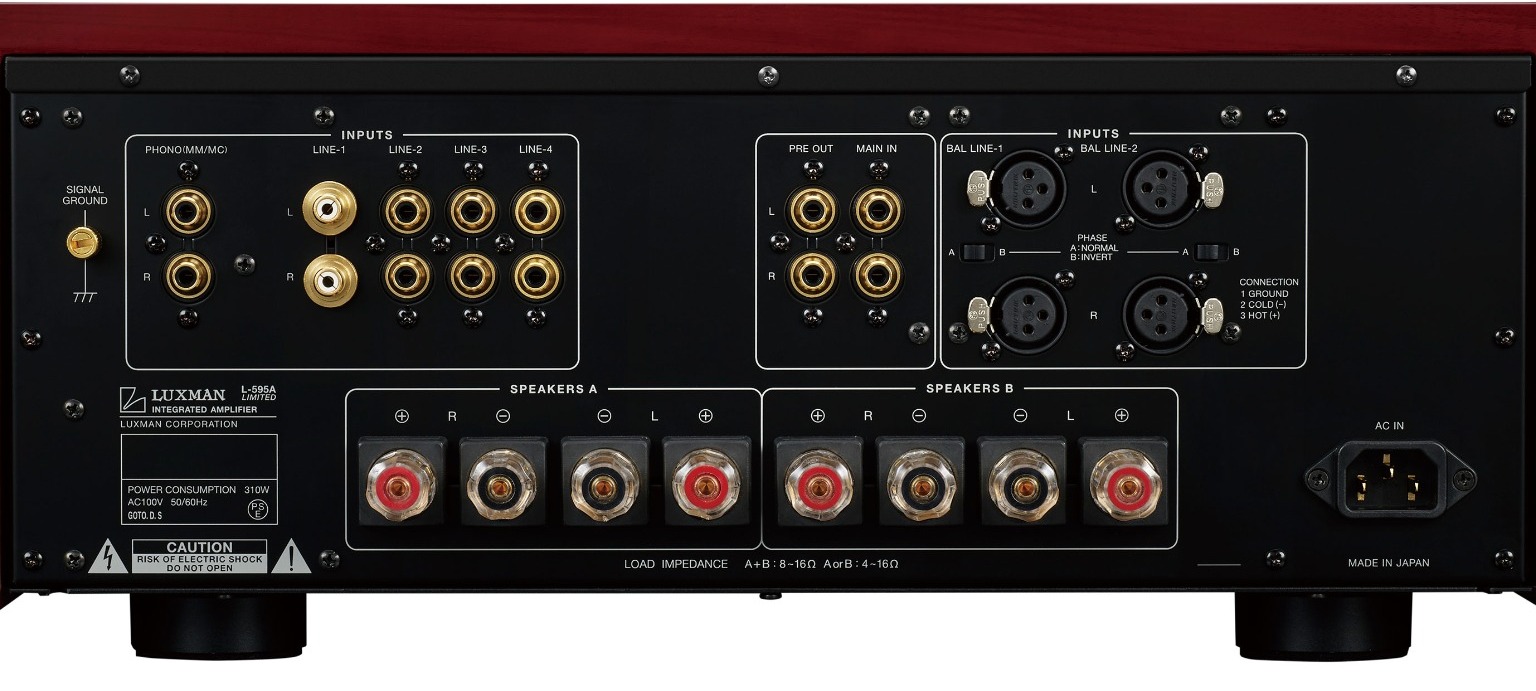

Input, separate output LINE x 4, Phono x 1 (MM/MC switchable), BALANCE・LINE x 2, SEPARATE INPUT OUTPUT x 1 Speaker output A、B2 LINE (A&B output at the same time is available)
Amplifying circuit, output configuration ODNF-u, bi polar triple-parallel push-pull
Input sensitivity/input impedance PHONO(MM): 2.5mV / 47kΩ, PHONO(MC): 0.3mV / 100Ω, LINE: 180mV / 47kΩ
Total harmonic distortion 0.007% or less (1kHz／8Ω), 0.06% or less (20Hz～20kHz／8Ω) S/N ratio, frequency response LINE: 105dB or more, 20Hz～100kHz(+0、-3.0dB)
External unit [Front panel] Power button、Input switch selector (LINE1-4/BAL-1,2/MM/MC)、Volume headphone jack, Speaker selector (A/B), Tone control (BASS/TREBLE), LR balance control Remote control receiver, Line straight, Loudness, Separate (operable only via remote), Mute, Subsonic, Monaural) [Rear pane;] Input output terminal, Ground terminal, Balance phase switch, AC inlet Power consumption 310W, 230W(no signal), 0.4W(standby)
Dimensions and weight 454 (W)×186 (H)×462 (Front knob 19, Rear terminal 36 included) (D) mm, 27.7kg (main unit)
Accessories Remote control (RA-17A), Power cable
Prix: 12,590€ TTC
